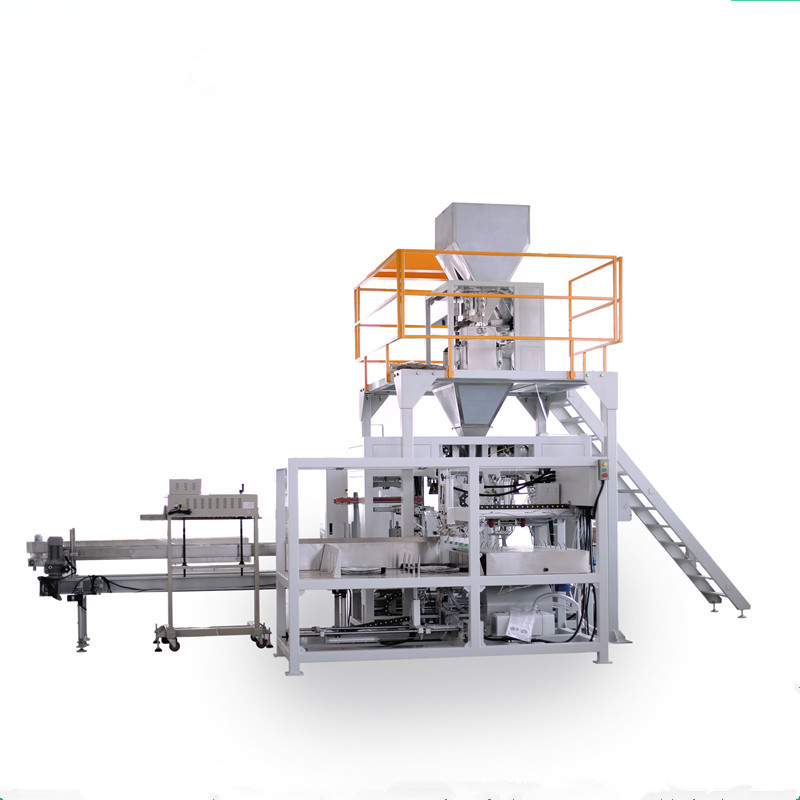

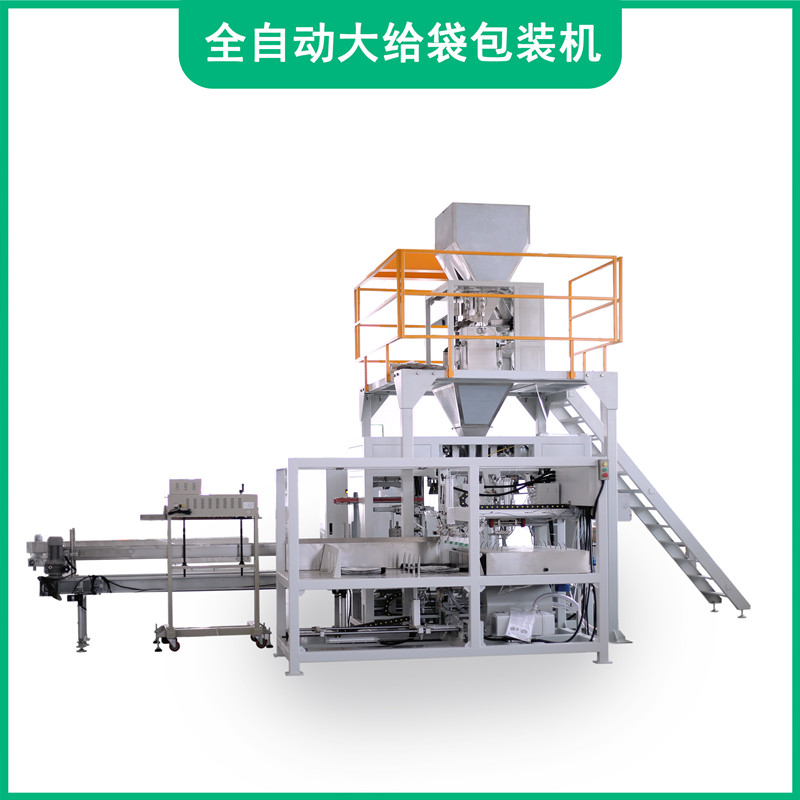

Automatic grain packing machine is used for automatic weighing and packing for grain material into big bag from 10kg to 50kg. Automatic heavy bag packing machine is made up of material silo, digital weigher, bag supplying unit, filling packing unit, conveying system and sewing system. Developed by our company to solve the problems of less available workers, higher labor cost and unstable manual operating quality for granule material big bag packing requirement. We supply also subsequent checker weight and robot palletizing system.

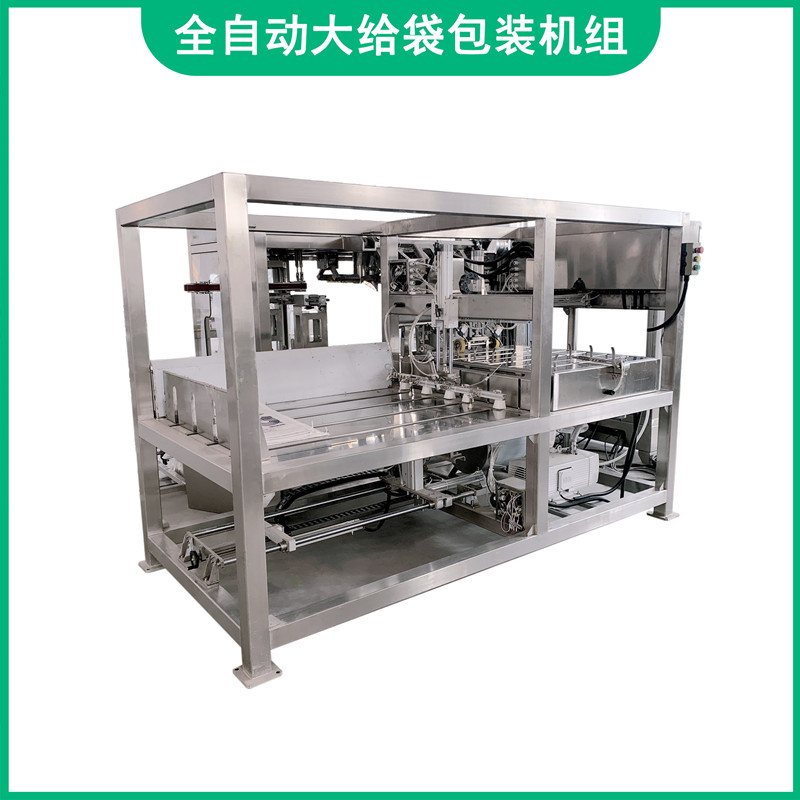

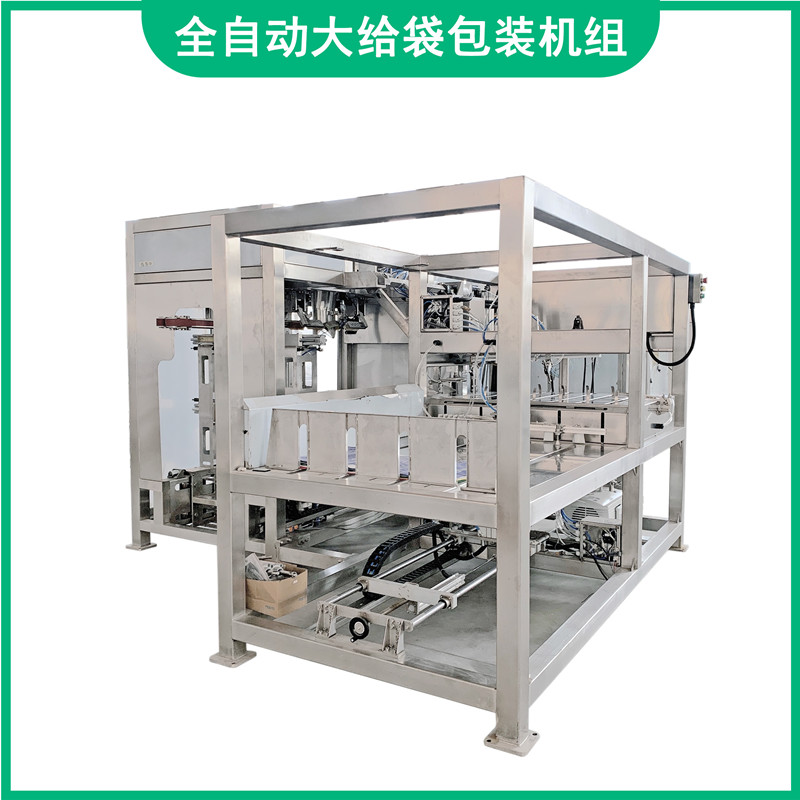

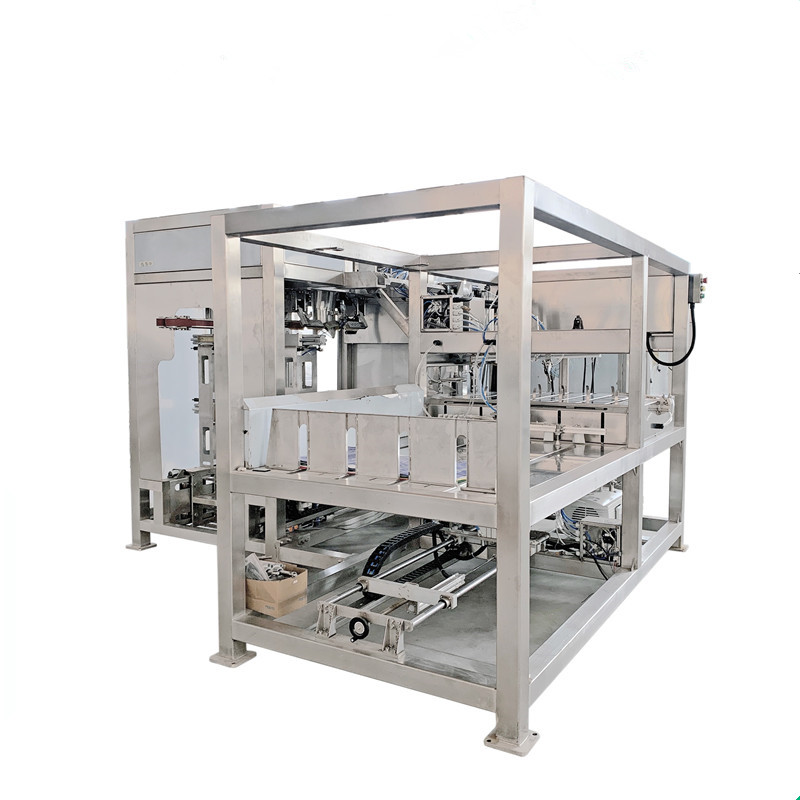

Unit configuration: material silo, digital weigher, bag supply system, packing system, conveying system and sewing system
◎Material: contact parts S.S 304 (or S.S 316L if need)
◎Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
◎Packing speed: 8~14 bags/min
◎Filling range: 10kg~50kg
◎Applied material: grain, rice, cereal, corn, wheat, etc.
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
| Model | XYG-600(fully-automatic) | XYG-600B(semi-automatic) |
| Bag size(mm) | L: 800~1000 W: 450~600 | |
| Bag material | Kraft bag, Woven bag, PE laminated bag | |
| Sealing type | Straight sealing | |
| Package range(kg) | 10~50 | |
| Accuracy | ±0.2% to± 0.3% | |
| Speed(bags/hr) | 500~800 | |
| Power rate(kw) | around 7.5 | |
| Power supply | AC 380V/50HZ | |
| Compressed air(Mpa) | 0.6~0.8 | |
| Noise | around 77dB | |
| Environment Temp. | ~20 ℃ to +40 ℃ | |
Transportation; After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
