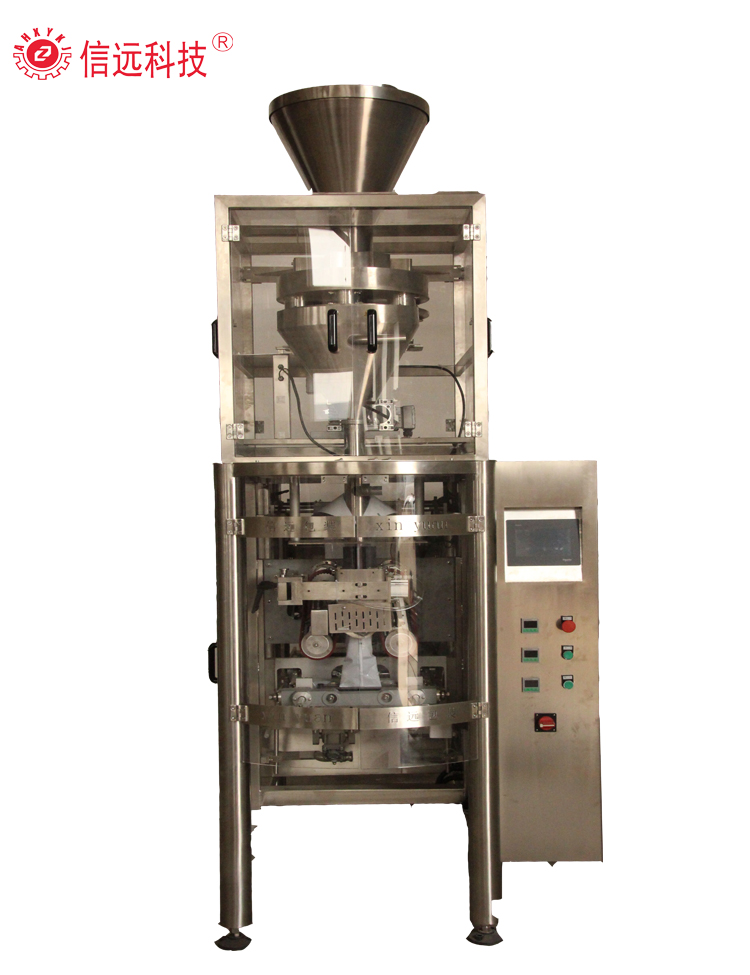

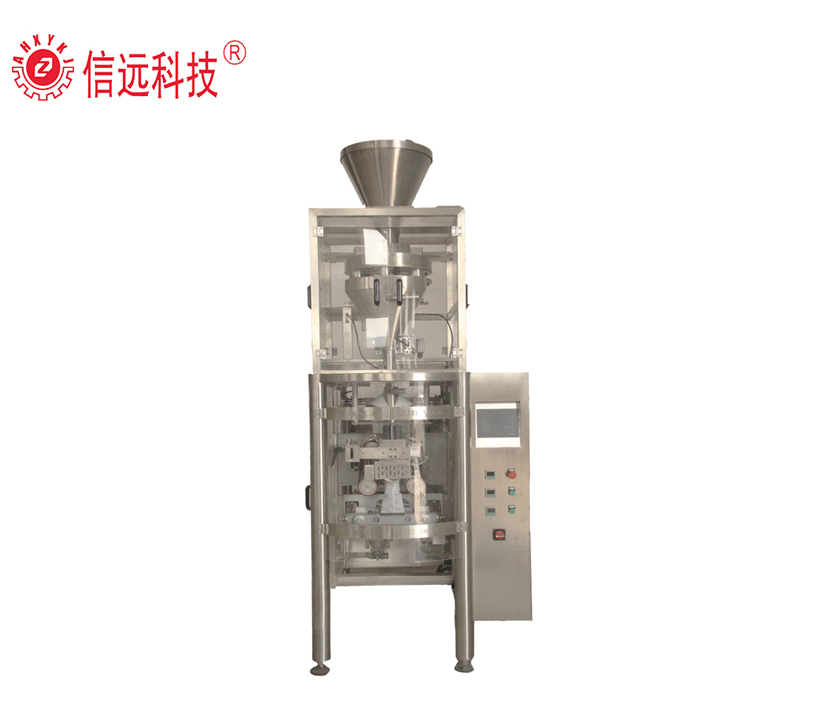

VFFS Vertical salt sugar aginomoto packing machine is used for automatic weighing and packing for salt/sugar industry. It can achieve bag forming, material weighing, filling, packing, coding and sealing fully automatically under set parameter. It is normally matched with volumetric cup weigher, output conveyor, weight checker and metal detector to form a whole production system.
- Unit configuration: volumetric cup weigher, film roller, coder, bag former, vertical heat sealing, horizontal heating and cutting
- Material: contact parts S.S 304 (or S.S 316L if need)
- Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
- Packing speed: (15-60)bags/min
- Filling range: 50g--2000g
- Applied material: sugar, salt and other fine granule material
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
| Model | XYS500 | XYS1000 |
| Configuration |
Bag-making packing machine + Measuring cup weigher + Conveyor |
|
| Packing speed(bag/min) | 20~70 | |
| Measuring range(g/bag) | 250~1000 | 1000~1500 |
| Measuring accuracy | ±0.5% to ±2% | |
| Bag making size(mm) |
L:190 W:110 |
L:250~360 W:180~280 |
| Power supply | AC 380V ±5% 50HZ/60HZ | |
| Air consumption | 0.6Mpa (0.3 ~ 0.6)m³/min | |
| Optional device | Weight sorter/Metal detector/Lifting elevator | |
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
