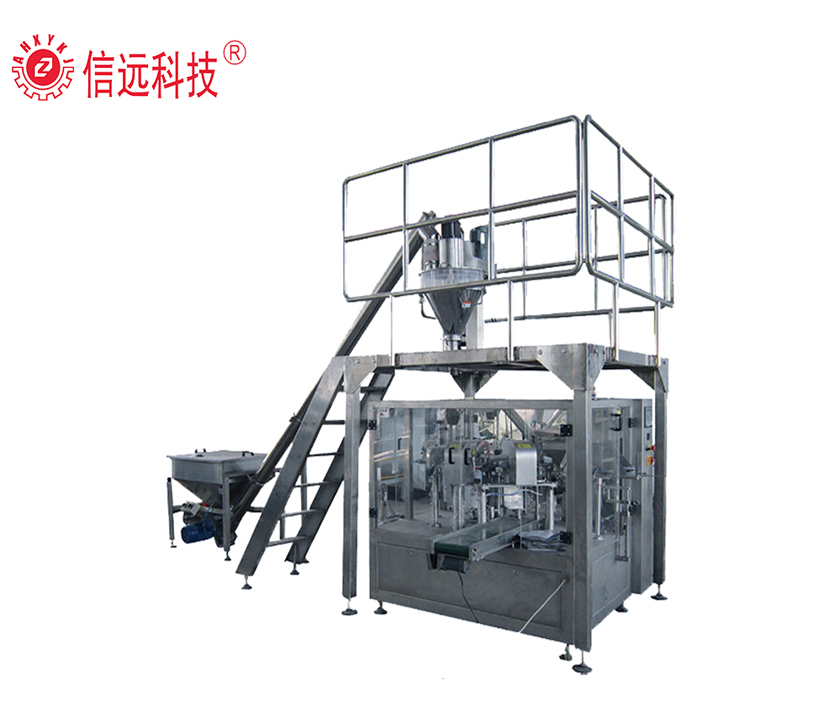

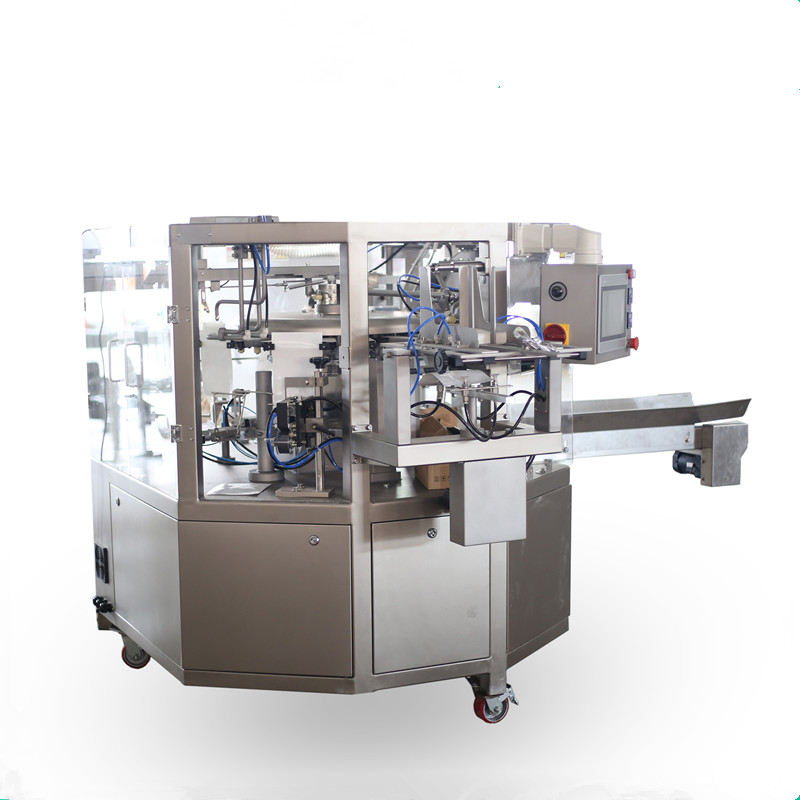

Automatic rotary pouch powder packing machine is used for automatic weighing and packing for powder type material in premade bag. It can achieve bag picking, material weighing, filling, coding and sealing fully automatically under set parameter. This packing machine can suit for various bag size easily by one button press, then the machine will adjust automatically. It is normally matched with screw filler, output conveyor, weight checker and metal detector to form a whole production system.
- Unit configuration: screw filler, premade bag packing machine, output conveyor
- Material: contact parts S.S 304 (or S.S 316L if need)
- Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
- Packing speed: (15-60)bags/min
- Filling range: 10g--5000g
- Applied material: powder material like milk powder, flour, food additives, chemical or fertilizer etc.
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
|
Model |
XYG6/8-200 |
XYG6/8-250 |
XYG6/8-300 |
|
Configuration |
Given-bag packing machine |
||
|
Packing speed(bag/min) |
25~60 |
20~50 |
|
|
Measuring range(g/bag) |
5~1000 |
5~1500 |
100~2500 |
|
Measuring accuracy |
±1% to ±2% |
||
|
Bag style |
Four-side-sealing bag/Doypack/Handbag |
||
|
Given-bag size(mm) |
W:100~200 |
W:180~250 |
W:200~300 |
|
Power rate(kw) |
2.5 |
2.5 |
3 |
|
Optional device |
Transfer conveyor/Weight sorter/Metal detector/Automatic packaging, sealing,packing,and stacking system for secondary packaging |
||
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
